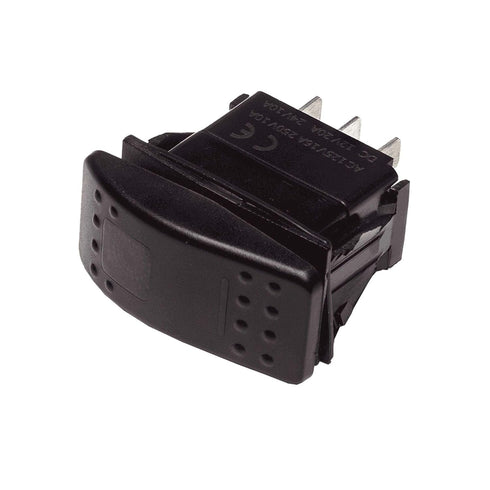

Progressive Automations Rocker Switch Momentary, 20A, Red LED, Waterproof

Progressive Automations Rocker Switch Momentary - 20A - Red LED - Waterproof

Progressive Automations Rocker Switch Momentary, 20A, Red LED, Waterproof

Progressive Automations has over 15 years of experience in automation, being a leader in the linear motion industry. Our engineering team has created a number of profitable linear motion products that are plug-and-play and suitable for different applications. We focus on creating a passionate team that enjoys their work in our spacious facility. We collaborate with new clients daily and eagerly embrace the opportunity to expand as the demand for automation grows. Progressive Automations has over 15 years of industry experience, which we apply to designing a wide range of linear motion products suitable for various applications. On top of that, the ISO 9001:2015 certification proves our dedication to continuous improvement in procedures, services, products, and the Quality Management System. Select models of rocker switches can be chosen in either momentary or non-momentary options. The RC-12 switch comes with attached wires for easy wiring to your power source and linear actuator. Select joysticks offer complete retraction and extension control option for 2 actuators separately. Select models of switches have built-in LED indicator for indicating when the switch is engaged. Durable materials and reliability from an ISO certified company to serve you well over the years. RC-12 Momentary Switch RC-11 Non-Momentary RC-15 (4 Direction) RC-09 (2 Direction) RC-05 Latching Button RC-03 Momentary Switch RC-01 Non-Momentary How do momentary and non-momentary switches work differently? Momentary switches are spring-loaded so releasing the switch will spring the switch back to the off position. Non-momentary switches require the operator to manually change the switch positions to change travel direction of an actuator. Does the RC-05 Latching Push Button require additional accessories to control an actuator? Please note that in order to use the RC-05 Latching Push Button with an actuator, you will need a DPDT relay. When the button is pushed it will fully extend the actuator and when the button is pushed a second time it will retract the unit. What are the different LED wiring configurations for the RC-10 / RC-11 rocker switches? LED Wiring: - Square LED (Always On): GND to Pin 7, 12 VDC to Pin 3 - Square & Strip LED (On when rocker switch engaged): GND to Pin 7, 12 VDC to Pin 2 Can the joysticks be wired directly to an actuator for controls? Our joysticks (depending on the model) have either a 4x SPST or 2x SPST circuitry which will still require additional relays to be able to have DPDT functionality to reverse polarities of the 2 wires of an actuator.

Key Features

• ✅ Voltage: 12VDC
• ✅ Switch Operation: On-Off-On
• ✅ Circuitry: DPDT
• ✅ Contact Current Max:20A
• ✅ Switch Terminals: Quick Connect
